Monitoring

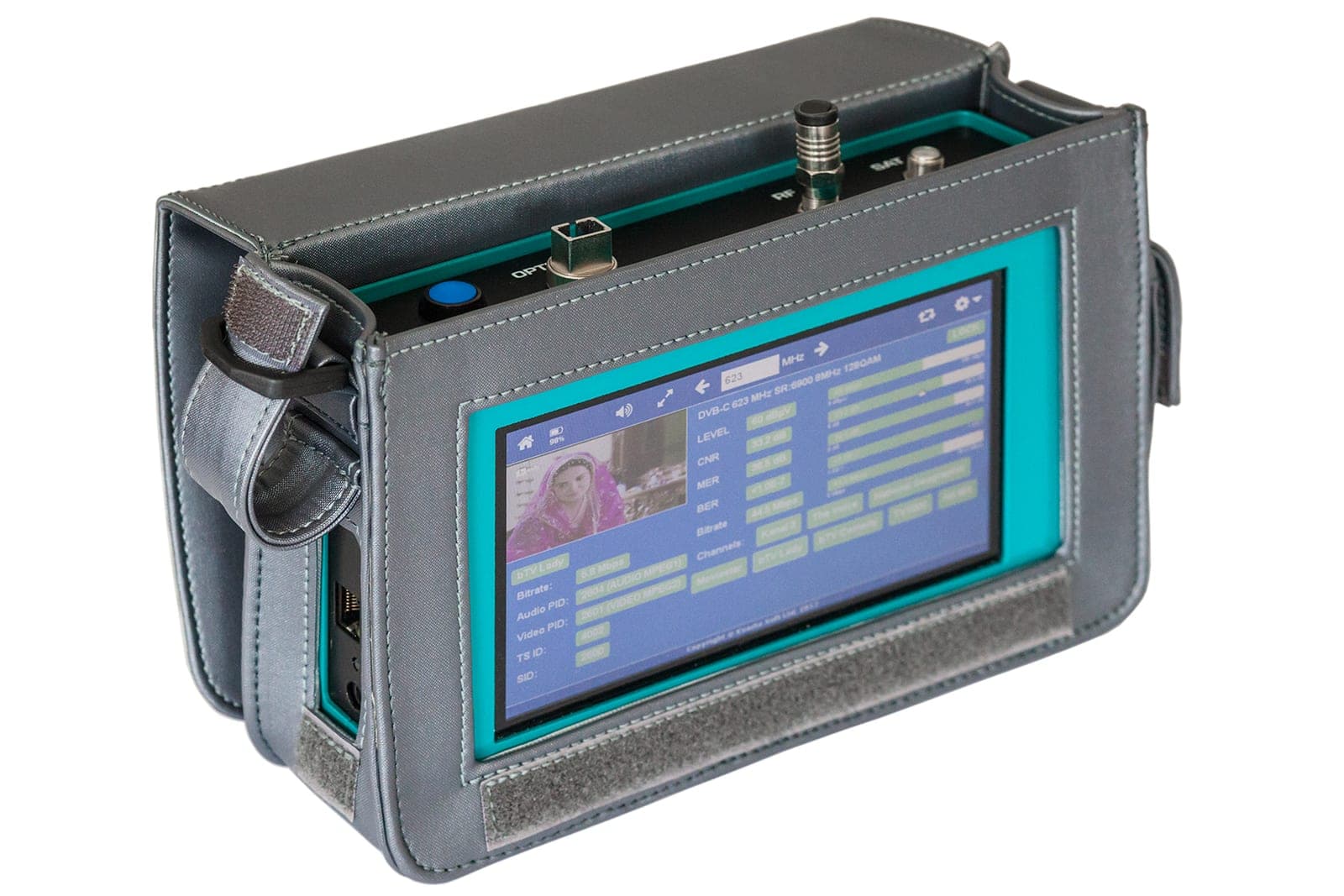

Portable TV Meter (WIFI)

Portable CATV, Terrestrial, Satellite, IPTV, Optical measurement device with WIFI  A portable TV …

€856.00
Measurements

  • Worldwide delivery

    TNT Express or DHL, cost calculated by weight at checkout.

  • Try it live first

    Test this device in our online demo lab at lab.kvarta.net.

  • Tested before shipping

    Every unit is new and tested before it leaves our stock.

  • Business invoicing

    Add your Company ID (VAT) at checkout.

Portable CATV, Terrestrial, Satellite, IPTV, Optical measurement device with WIFI

A portable TV measurement device with WIFI connectivity, equipped with the abilities to measure TV networks - DVB-C/T/T2/S/S2/ATV,  IPTV networks and an Optical Power Meter, the Smart Penguin offers real-time measurement of broadcast and network services to any service providers. With a battery life that can last up to 6 hours, it can be used during new installations or maintenance and repair work on components of TV/IP/Optical networks and transmitters. Besides an RF field strength meter the Smart Penguin is also an IPTV analyser, supporting RTP/UDP unicast and multicast streams.

Features

 • Real-time measurement
 • Measure TV networks - DVB-C/T/T2/S/S2/ATV
 • Measure IPTV networks
 • TR 101 290 MPEG TS measurements
 • Reliable scanning of the band
 • Digital TV measurements: BER, MER, VBER, CBER, C/N, SNR, Level, Bitrates
 • IPTV measurements: Bitrate, RTP errors, CC errors, Packet Delays
 • Checks internet speed
 • Optical power range:/-50 dBm ~ +6 dBm/ or /-30 dBm ~ +26dBm/
 • Wavelengths: 850nm/1300nm/1310nm/1490nm/1550nm/1625nm

Benefits

• Easy to operate and configure
• Can validate internet speed
• Up to 6 hours of battery life
• Portable and easy to carry
• Future proof - firmware upgradeable
• Best price on the market
